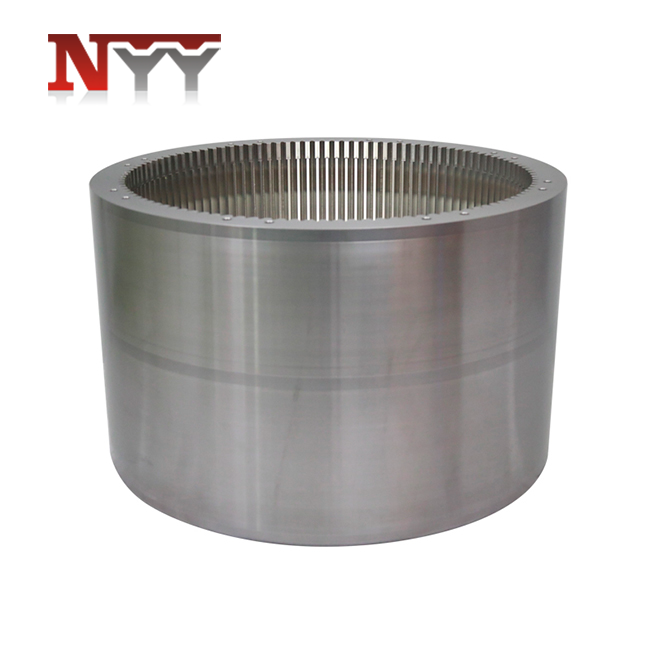

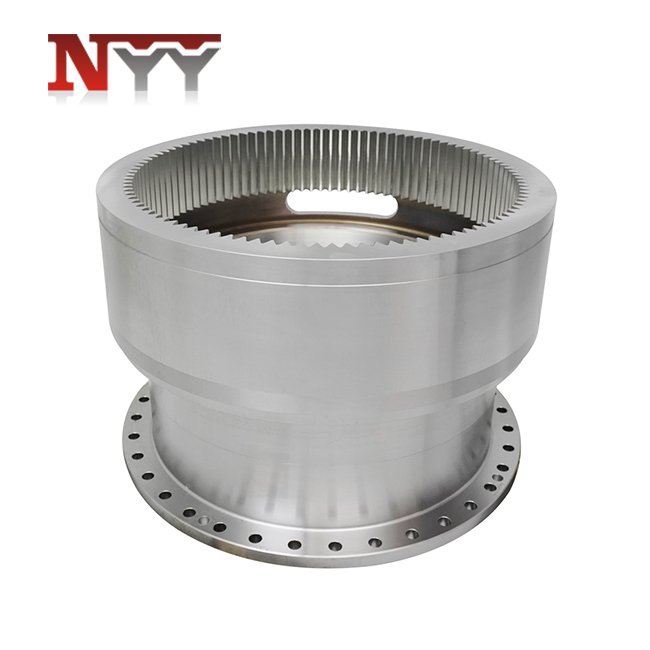

Rim Reducer Ring Gear

Gear Tooth Shape: involute
Gear Material: 40CrNiMoA
Pressure Angle: 25°
Quality level: ISO 1328-1995 class6
Quantity:

Gear Basic Data
Gear Tooth Shape	involute
Gear Material	40CrNiMoA
Gear Process	foging, lating, hobbing, external grinding, tooth grinding
Pressure Angle	25°
Quality level	ISO 1328-1995 class6
Gear Type	Mn=10, Z=92, β=0°, X=-0.1517
Total Length mm	597
Packing	Seaworthy package
MOQ	5

Gear Basic Data

Gear Tooth Shape

involute

Gear Material

40CrNiMoA

Gear Process

foging, lating, hobbing, external grinding, tooth grinding

Pressure Angle

25°

Quality level

ISO 1328-1995 class6

Gear Type

Mn=10, Z=92, β=0°, X=-0.1517

Total Length mm

597

Packing

Seaworthy package

MOQ

INTERNAL GEARS AND INTERNAL SPLINES
	MILLING	SHAPING	TOOTH GRINDING
Maximum O.D.	2500 mm	2500 mm	2500 mm
Minimum I.D.	650 mm	50 mm	100 mm
Maximum Face Width	500 mm	500 mm	500 mm
Maximum Diametral Pitch	DP 1	DP 1	DP 0.5
Maximum Module	26 mm	26 mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±22.5°	±22.5°	±45°

EXTERNAL GEARS AND EXTERNAL SPLINES
	HOBBING	MILLING	TOOTH GRINDING
Maximum O.D.	1250 mm	2500 mm	2500 mm
Minimum O.D.	20 mm	200 mm	20 mm
Maximum Face Width	500 mm	500 mm	1480 mm
Maximum Diametral Pitch	DP 1	DP 1	DP 0.5
Maximum Module	26 mm	26 mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±45°	±45°	±45°

INTERNAL GEARS AND INTERNAL SPLINES

MILLING

SHAPING

TOOTH GRINDING

Maximum O.D.

2500 mm

Minimum I.D.

650 mm

50 mm

100 mm

Maximum Face Width

500 mm

Maximum Diametral Pitch

DP 1

DP 0.5

Maximum Module

26 mm

45 mm

AGMA Level/ DIN Level

DIN Class 8

DIN Class 4

Tooth Surface Finishing

Ra 3.2

Ra 0.6

Maximum Helix Angle

±22.5°

±45°

EXTERNAL GEARS AND EXTERNAL SPLINES

HOBBING
