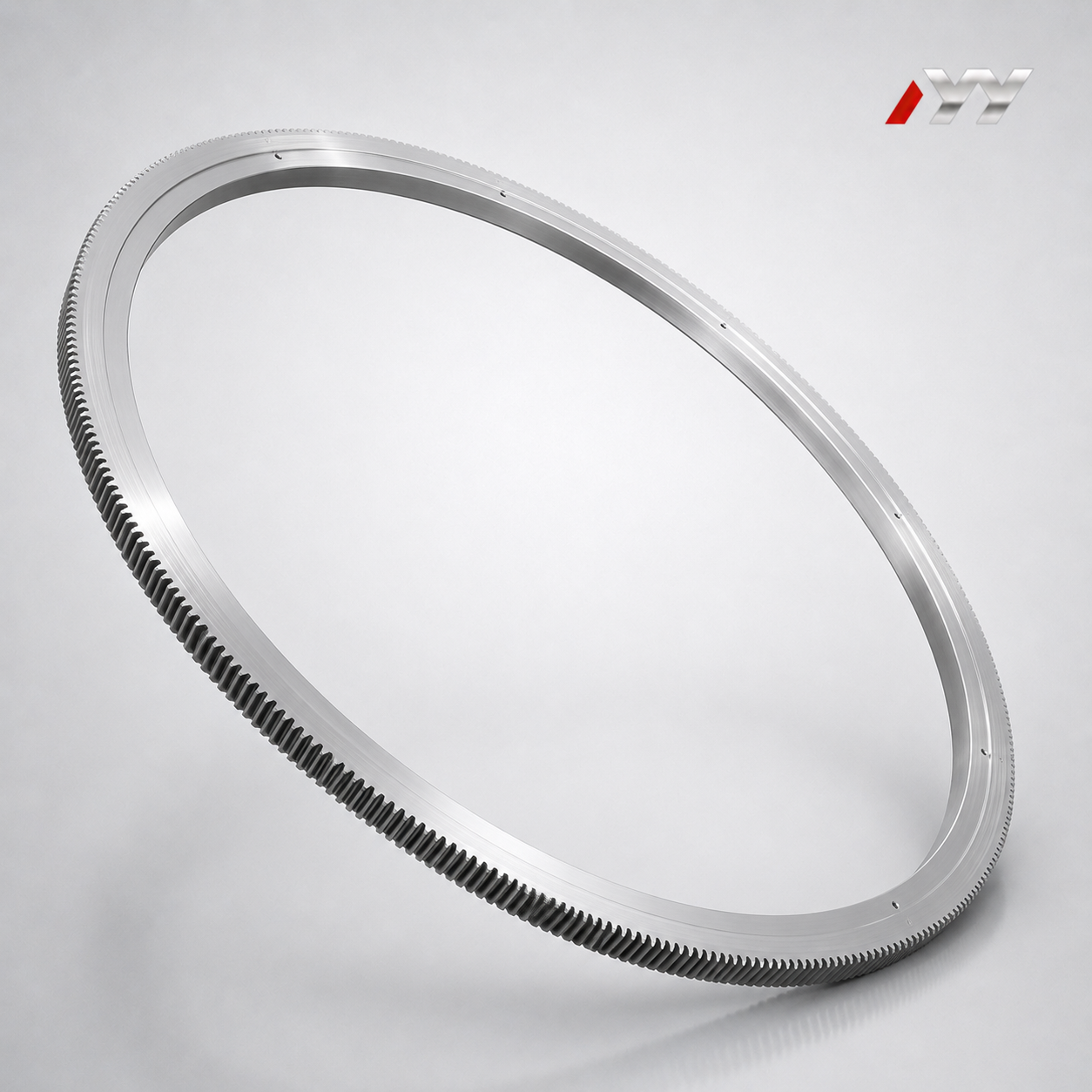

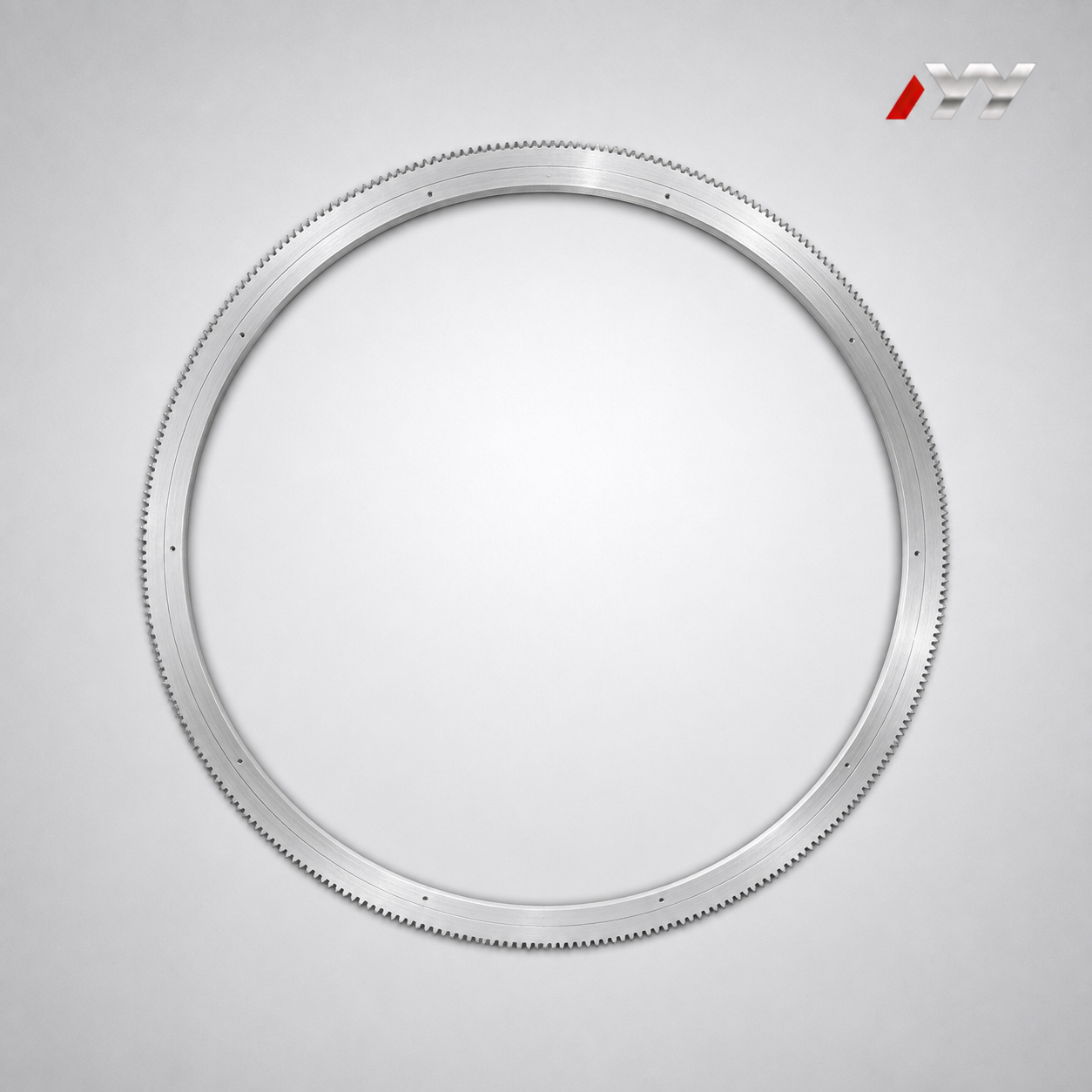

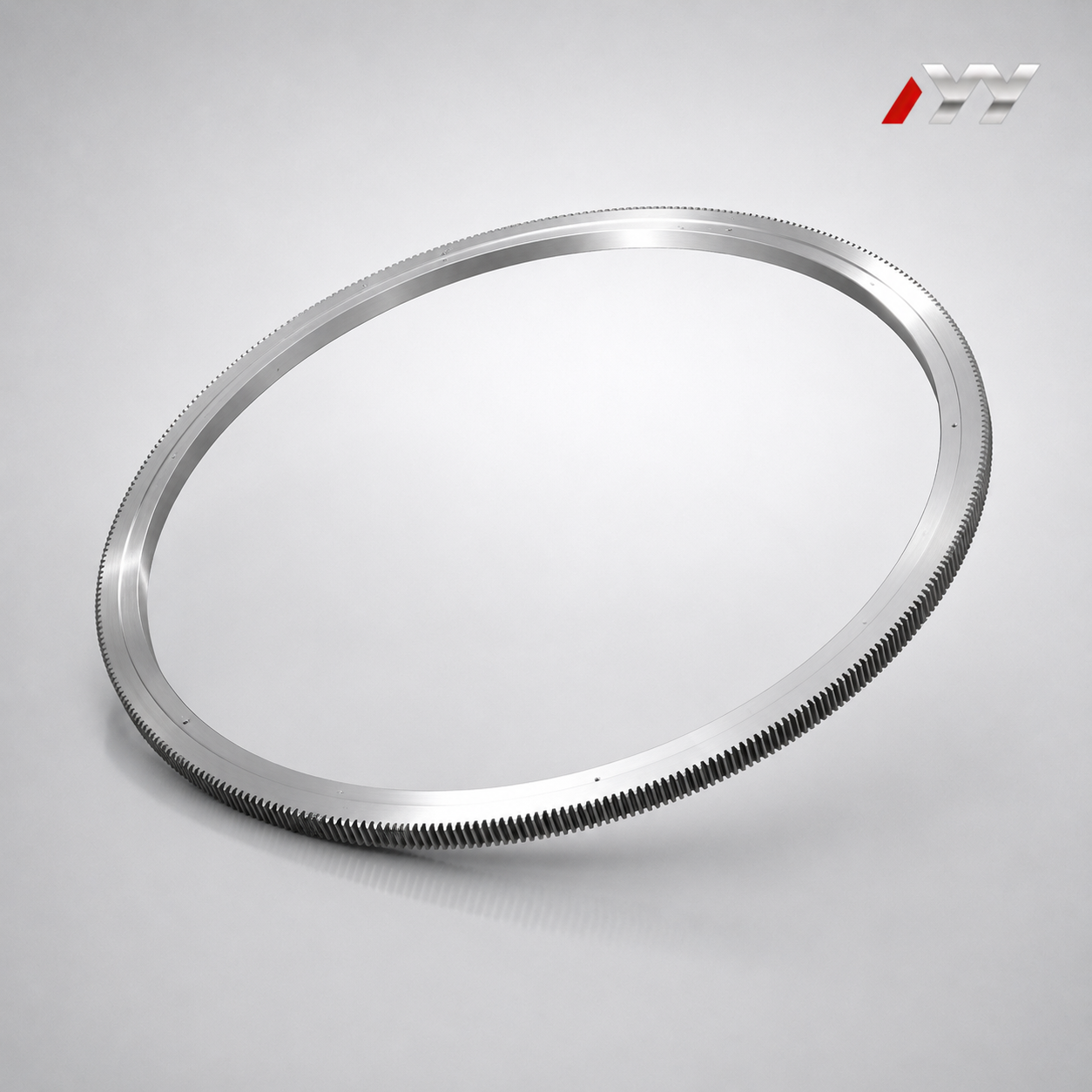

42CrMo Ground Spur Ring Gear for Circular Knitting Machinery

Key Features:
Designed for circular knitting machinery and precision industrial transmission systems
Spur ring gear structure for stable rotation and reliable torque transmission
Made from 42CrMo material for high strength and durability

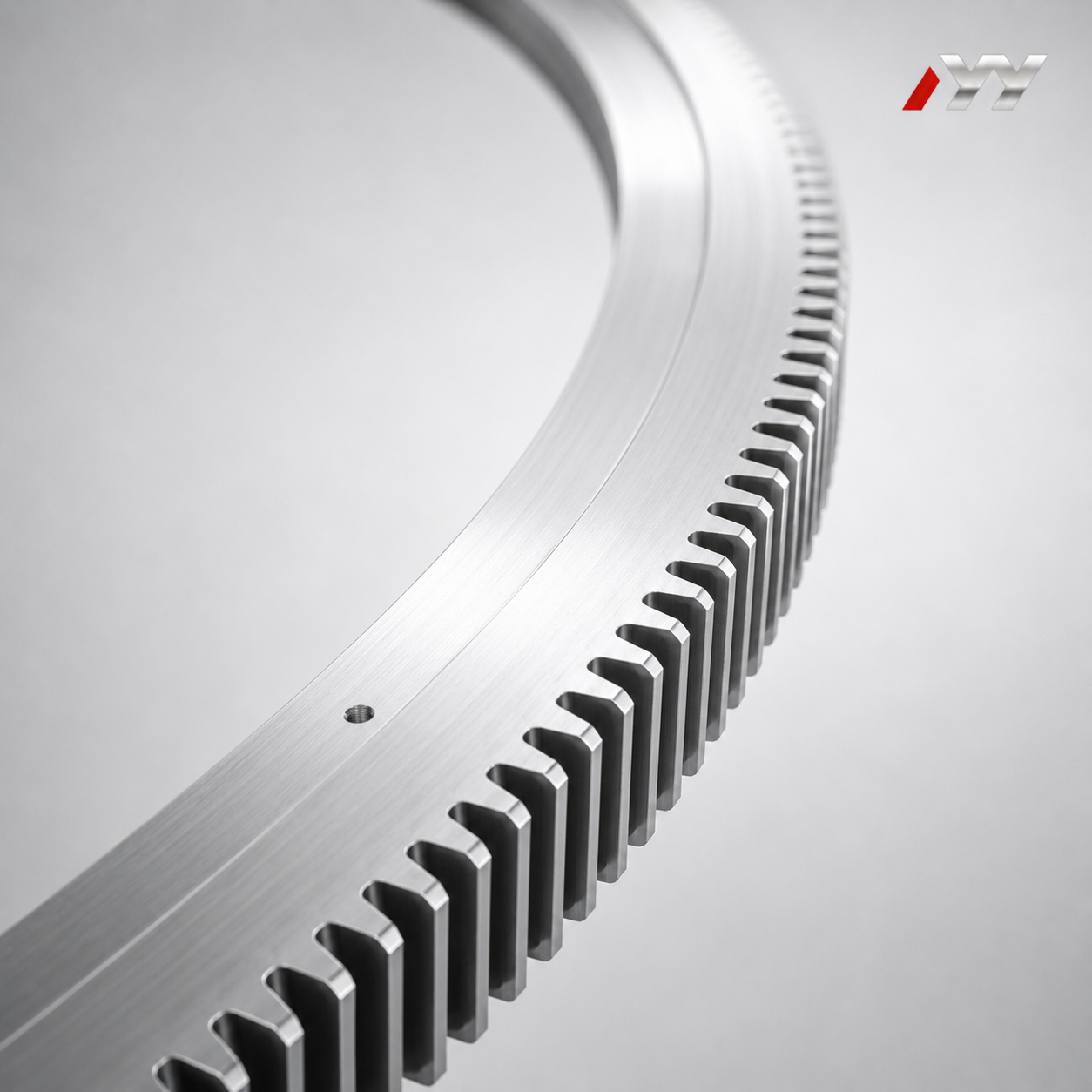

Ground tooth surface for improved meshing accuracy and smoother operation
Involute tooth profile for stable gear engagement
20° pressure angle for standard industrial gear transmission
DIN 3962 Class 6 accuracy for improved transmission precision
Suitable for large-diameter ring gear applications requiring stable performance
Custom manufacturing available based on drawings, samples, and technical requirements

Gear Basic Data
Gear Tooth Shape	involute
Gear Material	42CrMo
Gear Process	forging, lathing, hobbing, internal and plane grinding, tooth grinding
Pressure Angle	20°
Quality level	DIN 3962 class 6
Gear Type	Mn=3.5, Z=390, β=0°, X=0.25

Gear Basic Data

Gear Tooth Shape

involute

Gear Material

42CrMo

Gear Process

forging, lathing, hobbing, internal and plane grinding, tooth grinding

Pressure Angle

20°

Quality level

DIN 3962 class 6

Gear Type

Mn=3.5, Z=390, β=0°, X=0.25
