INTERNAL GEARS AND INTERNAL SPLINES
	MILLING	SHAPING	TOOTH GRINDING
Maximum O.D.	2500 mm	2500 mm	2500 mm
Minimum I.D.	600 mm	100 mm	100 mm
Maximum Face Width	700 mm	500 mm	700 mm
Maximum Diametral Pitch	DP 0.79	DP 2.54	DP 1
Maximum Module	32mm	10mm	26mm
AGMA Level/ DIN Level	DIN Class 10	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±22.5°	±30°	±45°

EXTERNAL GEARS AND EXTERNAL SPLINES
	HOBBING	MILLING	TOOTH GRINDING
Maximum O.D.	1250 mm	2500 mm	2500 mm
Minimum O.D.	16 mm	100 mm	20 mm
Maximum Face Width	500 mm	900 mm	1480 mm
Maximum Diametral Pitch	DP 1.58	DP 0.79	DP 0.56
Maximum Module	16mm	32mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 10	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±45°	±22.5°	±45°

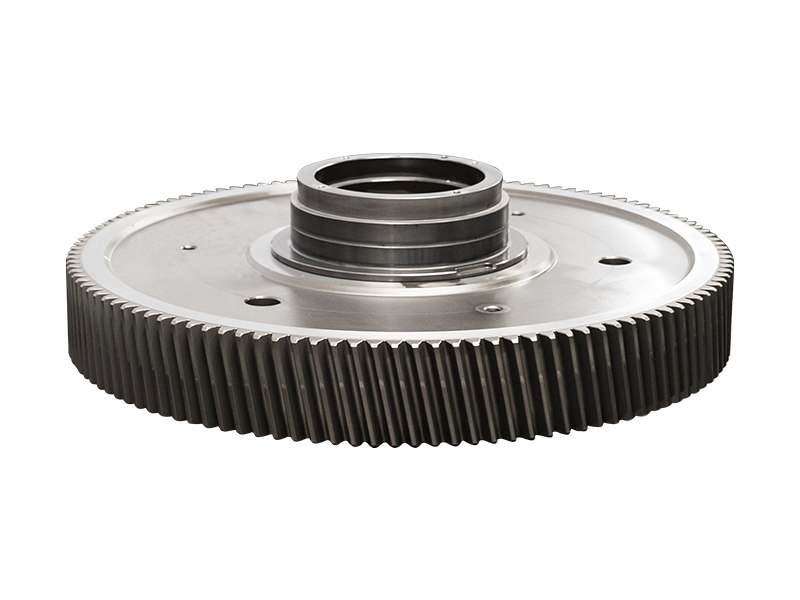

Wind power increasing gearbox high speed side big gear
